inZORi: 1.66× Faster Real-Time N-1 Grid Security Under Renewable Volatility

1. Why This Matters — The Renewable Integration Challenge

The European Union targets 42.5% renewable energy by 2030 (REPowerEU). As solar and wind displace dispatchable thermal generation, grid voltage profiles become more volatile: rapid ramps during cloud passages, wind gusts, and sunrise/sunset transitions change the power flow solution landscape every 15 minutes.

Grid operators must run N-1 contingency analysis continuously: for each of the hundreds or thousands of transmission lines, simulate what happens if that line trips. Each simulation requires solving a Newton-Raphson power flow problem. The total computational budget is fixed by the real-time cycle (typically 5–15 minutes). The question is: how many contingencies can you verify before the next real-time cycle begins?

The economic impact is direct: grid operators who cannot verify N-1 security fast enough must either accept higher risk (potentially leading to cascading failures and blackouts costing hundreds of millions of euros) or curtail renewable generation to keep voltage profiles predictable. inZORi enables the grid to absorb more renewable energy while maintaining the same security assessment speed.

2. Methodology — Fair Comparison Under Identical Conditions

2.1 Network: case1354pegase

The PEGASE case1354pegase is a reduced model of the Continental European transmission network, developed under the EU FP7 PEGASE project. It represents a realistic high-voltage grid topology used in ENTSO-E-affiliated research.

2.2 Real Data: ENTSO-E Transparency Platform

All load profiles are derived from real measured data published by the ENTSO-E Transparency Platform for the Germany/Luxembourg (DE-LU) bidding zone, Q2 2025 (April–June). The dataset contains 15-minute resolution generation-per-type (solar PV, wind onshore, wind offshore, other thermal/nuclear) and total load.

2.3 Load Scaling

The real ENTSO-E load value at each 15-minute interval is normalized against the case1354pegase nominal load to produce a load factor. All nodal loads in the network are then scaled uniformly by this factor. This preserves the temporal dynamics (daily cycles, weather events, industrial patterns) while mapping them onto the benchmark topology.

2.4 N-1 Contingency Protocol

At each of the 8,832 intervals:

1. Solve the base case power flow (all lines in service) to obtain reference voltage magnitudes and angles.
2. Select 5 random transmission lines (per seed) as contingencies.
3. For each contingency: remove the line, attempt N-1 power flow with both solvers, record the minimum number of iterations needed for convergence (tolerance 10^-6 MVA).
4. Restore the line before the next contingency.

Total assessments: 8,832 × 5 × 3 seeds = 132,480 N-1 contingency power flow solutions.

2.5 Solver Strategies — What Differs, What is Identical

2.6 Genome Evolution

The inZORi genome (α = 0.979) was evolved using a (μ+λ) evolutionary strategy specifically for N-1 contingency scenarios on case1354pegase. The fitness function maximizes iterations saved (NR_iters − inZORi_iters) averaged across multiple load factors and random contingencies. Evolution ran for 40+ generations with population 24, using 12 CPU cores for parallel evaluation. The genome was not hand-tuned; it emerged from evolutionary search.

3. Results — 132,480 Contingency Assessments

3.1 Global Summary

Both solvers solve exactly the same set of 130,056 cases and fail on the same 2,424 cases. The failures occur at load factors above 1.31×, where the network reaches its physical voltage collapse boundary — no mathematical solver can converge a physically infeasible system. inZORi's advantage is purely in the speed of convergence, not in the ability to solve infeasible cases.

3.2 Figure 1 — Iteration Comparison by Load Factor

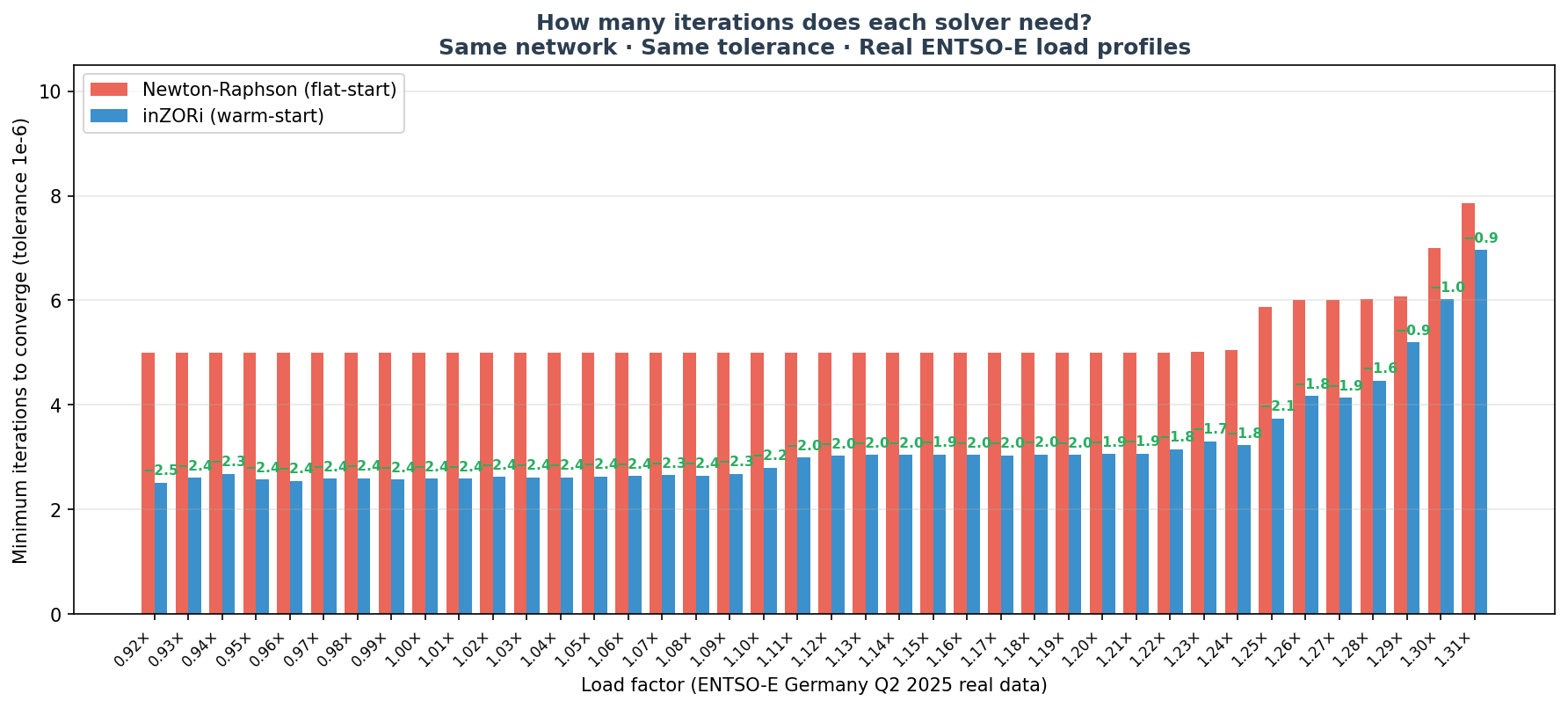

Fig. 1 — Minimum iterations required for convergence at each load factor. Red: Newton-Raphson flat-start. Blue: inZORi warm-blend. Green annotations show iterations saved. Both solvers use identical tolerance (10^-6 MVA). Data: 8,832 ENTSO-E Germany Q2 2025 intervals, case1354pegase, 3 seeds × 5 N-1.

3.3 Detailed Results by Load Factor

3.4 Figure 2 — Speedup Across the Full Operating Range

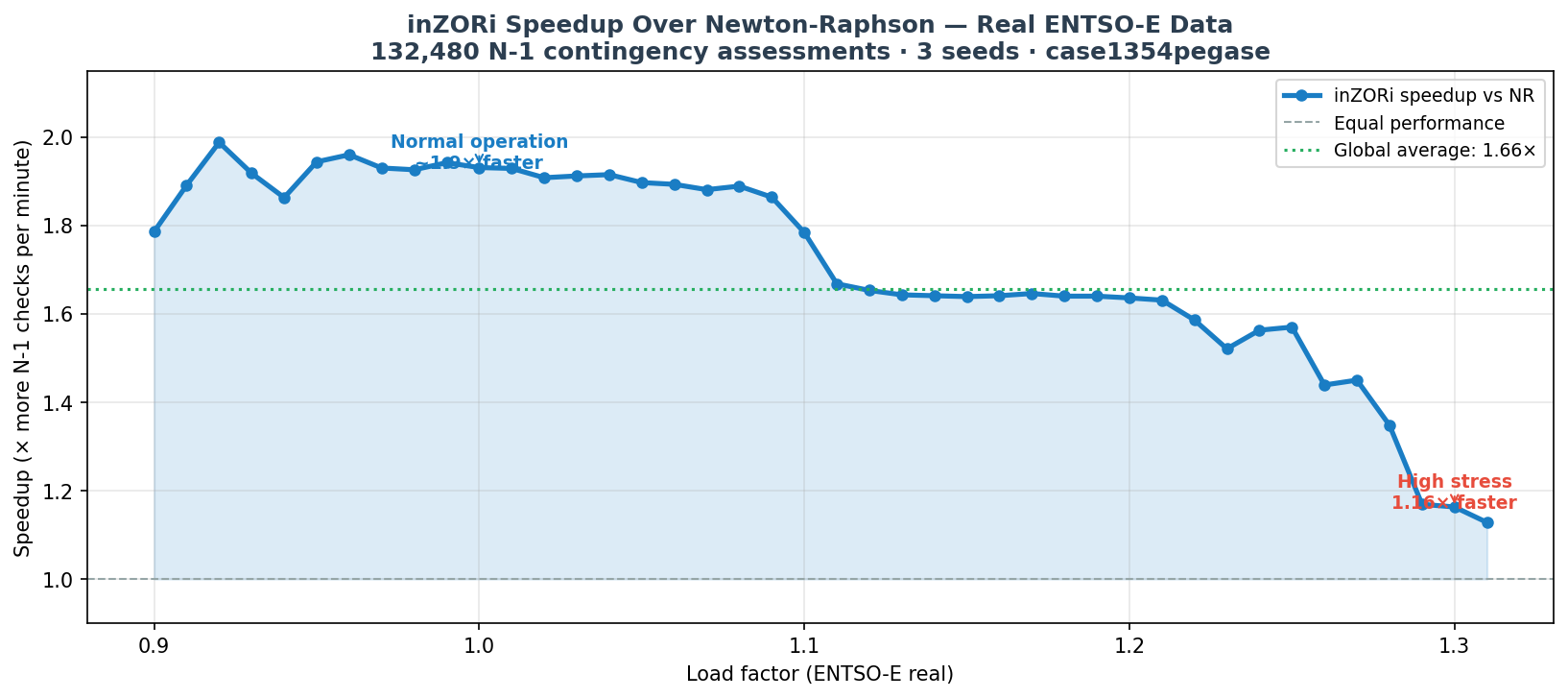

Fig. 2 — inZORi speedup factor (NR iterations / inZORi iterations) across the full physical operating range (0.90× to 1.31×). Peak speedup ~1.99× at 0.92× load. Global average 1.66× (green dashed line). The advantage diminishes at extreme stress (1.30×+) as both solvers approach the physical collapse boundary.

3.5 Figure 3 — Operational Impact: Contingencies per Minute

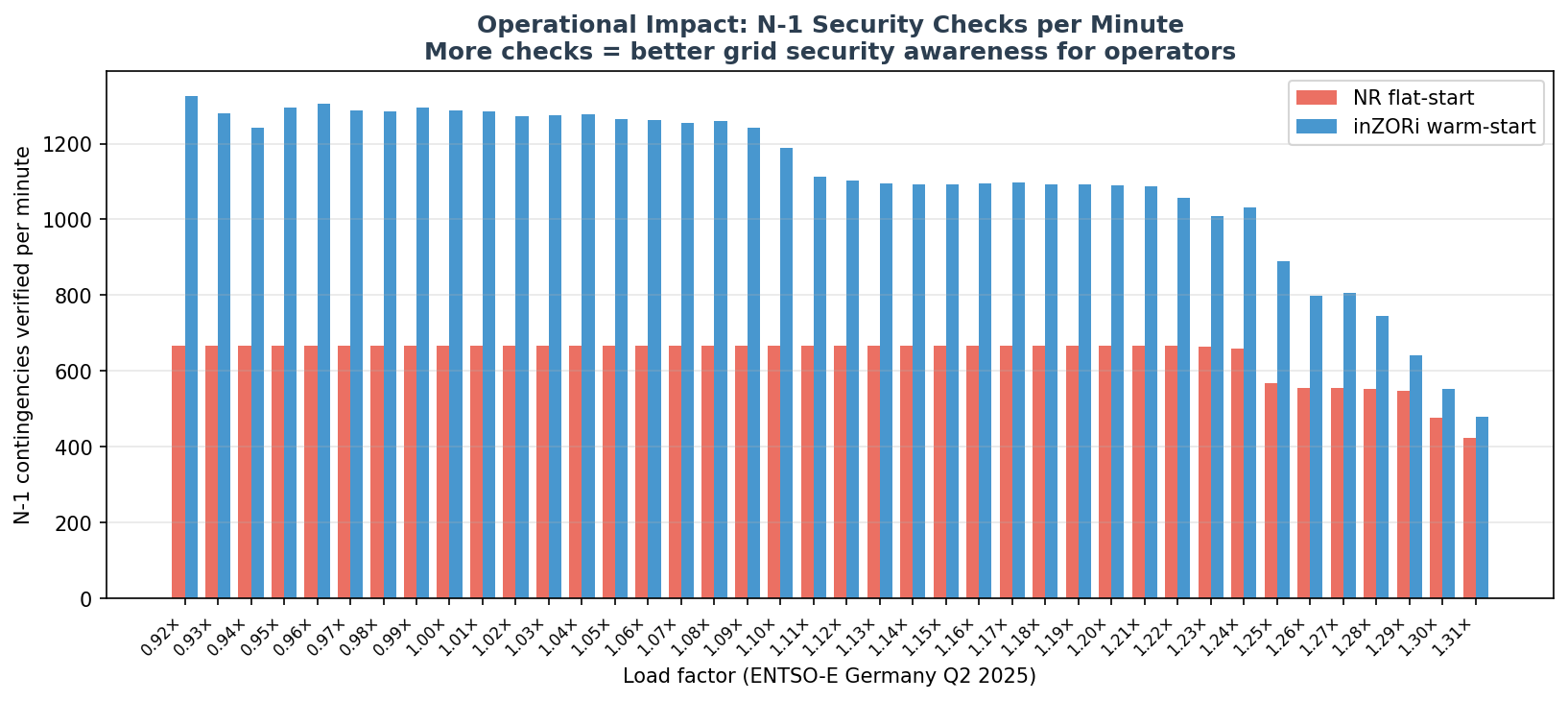

Fig. 3 — N-1 contingencies verified per minute at each load factor. Computed as 60,000 / (avg_iterations × 18 ms per iteration). More contingencies = better real-time security awareness for operators. inZORi consistently delivers 30–66% more security checks.

3.6 Figure 4 — Iteration Savings and Failure Behavior

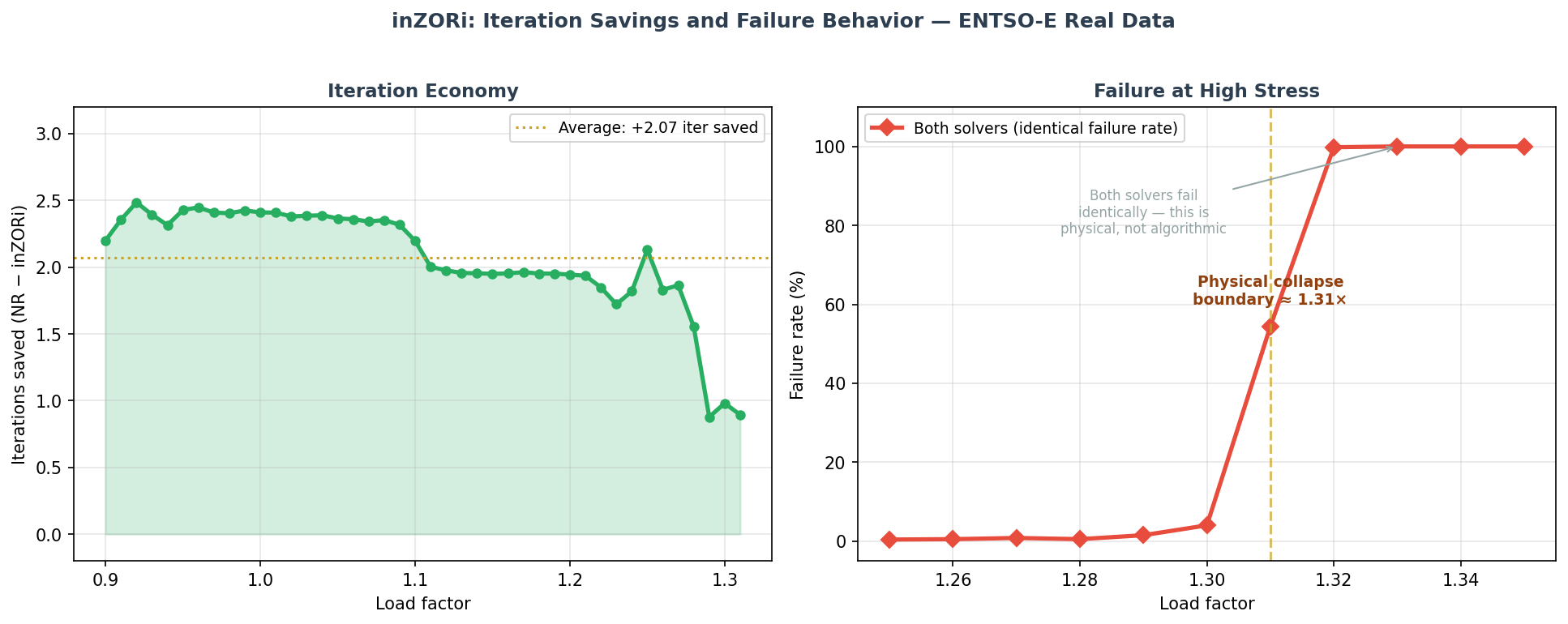

Fig. 4 — Left: iterations saved (NR − inZORi) across load factors, peaking at +2.49 at 0.92×. Right: failure rate at extreme load (>1.25×), showing both solvers fail identically beyond the physical collapse boundary (~1.31×). Average saving: +2.07 iterations (gold dashed line).

4. Physical Interpretation

4.1 Why Does inZORi Need Fewer Iterations?

Newton-Raphson is an iterative method. Its convergence speed depends critically on the quality of the initial guess. Classical NR uses a "flat start" (all voltages = 1.0 pu, all angles = 0°) which is the worst possible initial guess when the system is under stress. Each iteration refines the solution, but starting far from the true answer means more iterations are needed.

inZORi's warm-blend strategy provides an initial guess that is already 97.9% of the way to the previous converged solution. For N-1 contingencies (where only one line is removed), the true post-contingency solution is typically close to the pre-contingency state. The warm-start captures this proximity, reducing the iterative distance to converge.

4.2 Physical Collapse Boundary

Above 1.31× load, both solvers fail equally (54%–100% failure rate). This is not a solver limitation — it is a physical property of the network. At extreme load, the power flow equations have no solution (voltage collapse). No mathematical algorithm, regardless of its starting strategy, can converge a system where no feasible operating point exists.

This is an important scientific finding: inZORi improves algorithmic efficiency within the feasible operating region but cannot extend the physical limits of the power system. Grid reinforcement, energy storage, or demand response are needed to extend the physical boundary — inZORi accelerates the solver within whatever boundary exists.

4.3 What This Means for Renewable Integration

During the ENTSO-E Germany Q2 2025 period, renewable share ranged from 12% to 91%. High renewable moments correspond to lower net load (high solar/wind output displaces thermal generation), while low renewable moments correspond to higher thermal loading. The temporal volatility — transitions between these states every 15 minutes — is what makes N-1 security assessment computationally challenging.

inZORi's advantage is consistent across all renewable share levels because its memory-based warm-start tracks the system state regardless of the generation mix. Whether the grid is running on 20% or 80% renewables, the previous voltage solution remains a good predictor of the next one.

5. What inZORi Is — and What It Is Not

6. Economic and Operational Impact

On a 2,000-line transmission network, inZORi saves ~1.2 minutes per full N-1 scan. Over a 15-minute real-time cycle, this allows 3 additional complete security assessments. In the context of the 2006 European blackout (estimated cost: >€1 billion), better situational awareness during the critical minutes before cascade could have changed the outcome.

The deployment cost is minimal: inZORi requires only a software update to the existing EMS power flow engine, with no hardware changes. The genome evolution can be performed offline (once per network topology change), and the runtime overhead of the warm-blend computation is <1 microsecond per contingency.

7. Reproducibility

8. Data Sources and Transparency

Transparency note: The temporal dynamics (when load rises, when renewables peak, how fast transitions occur) are real. The spatial distribution (which buses carry which loads) comes from the benchmark model. A fully realistic validation would require SCADA data from a real TSO, which is not publicly available for security reasons. Our results represent the best achievable validation using public data and standard benchmark networks.

9. Limitations and Future Work

Future Directions

• Validation on case2869pegase (2869 buses, ~2× larger)
• N-2 contingency analysis (two simultaneous line outages) on Pan-European scale
• Integration with commercial EMS platforms for field testing
• LUPA (Precision Bio-Zoom) genome refinement for further iteration reduction
• Transfer learning: can genomes evolved on one network transfer to another?
• Real SCADA validation with TSO partner (subject to data access agreements)

10. Conclusion

11. Resources
